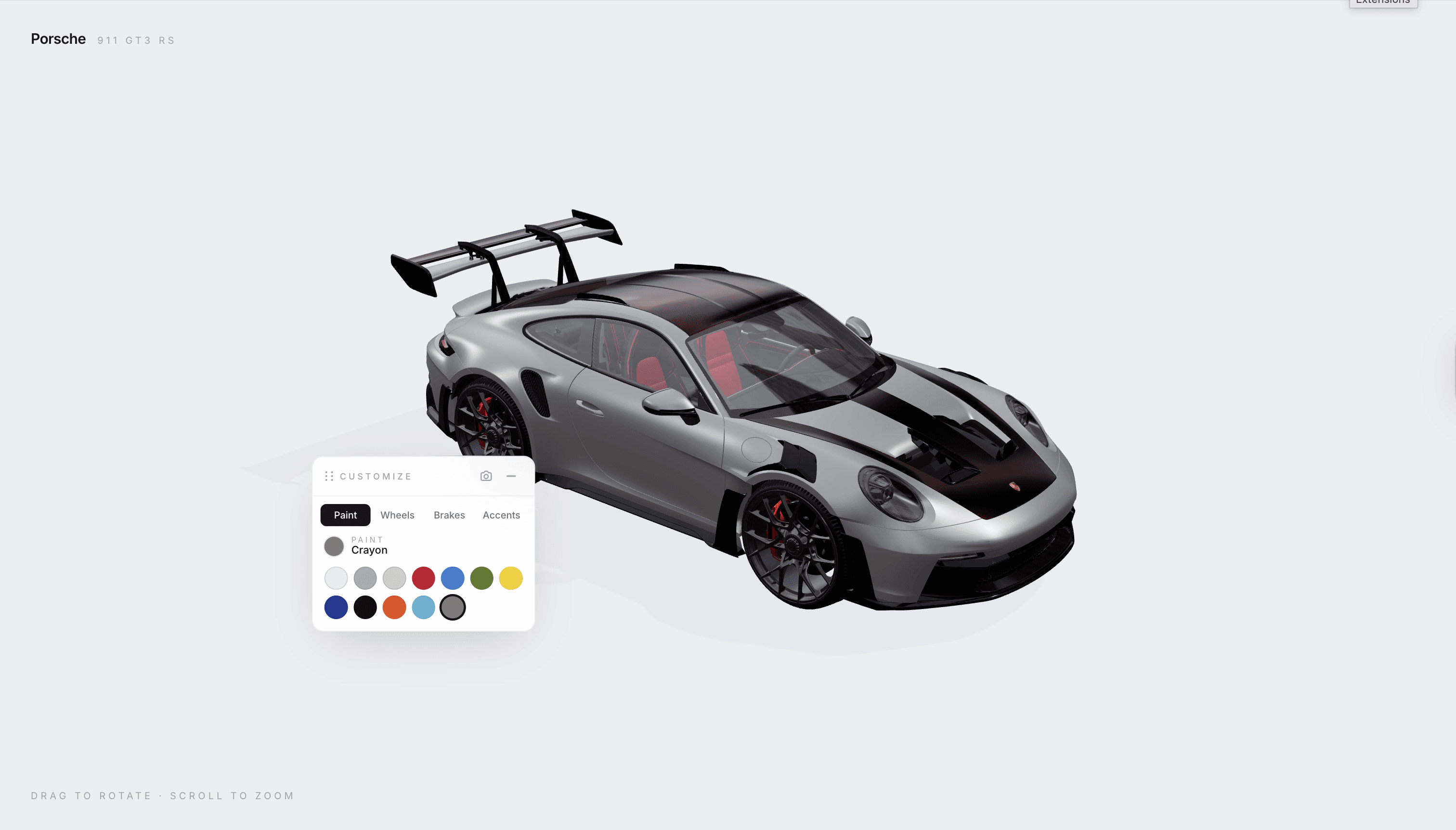

An interactive 3D configurator for the Porsche 911 GT3 RS — paint, wheels, brake calipers, and accents, all rendered in the browser with React Three Fiber. Built as a learning project to deepen my hands-on knowledge of Three.js and the R3F ecosystem.

FEATURES

• Real-time material recoloring on a full GLTF model — body paint, wheels, calipers, and accents update instantly.

• A floating, draggable customization panel with tabbed palettes and a collapsed pill state.

• Studio-style lighting and contact shadows that ground the car against a neutral backdrop.

• Multi-angle snapshot export — captures the configured car from several preset camera positions in one click.

• Orbit camera with auto-rotate, polar clamping, and constrained zoom so the car always looks composed.

IMPLEMENTATION HIGHLIGHTS

• Material classification on a third-party GLTF. The model ships with dozens of materials authored by someone else. Instead of hand-editing the asset, the renderer walks the scene graph on mount, clones each material, and tags it by name (carpaint, wheels_chrome, caliper, carbon_roof). Selections then update only the relevant clones, leaving the original PBR setup (normals, roughness maps, env intensity) intact. This was the most interesting part to build — it's also the most reusable, since the same approach works for any GLTF with reasonably-named materials.

• Finish-aware paint tuning. Body materials get a small PBR tweak based on the swatch's finish (solid / metallic / pearl), so a matte color reads clearly while a metallic keeps its sheen. Everything else keeps the model's calibrated values.

• Auto-fitting. The car's bounding box is measured at load time and a scale + offset is applied so the tyres always sit on the ground plane and the body is sized consistently, regardless of what's in the source file.

• Studio look. Two stacked ContactShadows give a crisp shadow under the tyres plus a wider, softer ambient falloff. The canvas, ground plane, and page background all share one neutral so there's no visible seam between the 3D scene and the surrounding UI.

• Snapshot rig. A small headless component registers a capture function with a ref. Triggering it temporarily moves the camera through a set of preset angles, renders each, and exports a single combined PNG — handy for sharing builds or producing portfolio shots.

CHALLENGES

• Working around a third-party model. No control over the source meant I had to lean on naming conventions and material cloning rather than mesh-by-mesh edits. Got me comfortable with traversing scene graphs in Three.js.

• Lighting balance. Real car configurators look great because of studio HDRIs and carefully tuned exposure. Getting close on a plain page took several passes — environment intensity, tone mapping, contact shadow opacity, and directional rim lights all interact.

• Avoiding a placeholder flash. An earlier version showed a procedural stand-in while the GLTF streamed in, which looked toy-like. The Suspense fallback was swapped for a quiet loading indicator so the first thing the user sees is the real car.
